Description

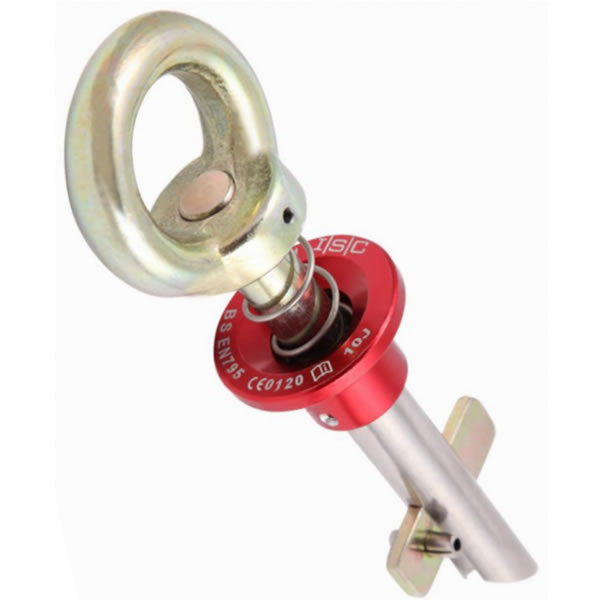

Small Girder Grip Anchor
ISC Girder & Concrete Anchors are a quick and easy portable anchorage solution which can be used in the vertical or horizontal plane. These anchors are operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted in to the anchor hole. Once the device is in position, the red collar can be released, causing the retention bar to engage, fixing the device in the anchor hole.
This anchor device has been designed to provide secure anchor points through steel structures such as I Beams
MBS:
28kN
Approved:
CE EN 795 B
Weight:
550g
Min. Beam Thickness:
30mm
Eye/Clip Loop Diameter:
32mm
Body Material:
Aluminium
Size of drilled hole:
20mm
