Description
The ALF Climb Assist Pulley was designed for the Challenge Course industry, as a simple method of protecting users on vertical climbs incorporated into a course.
The ALF is also a protection solution for workers on towers, masts, wind turbines and even in construction applications where a cost-effective, temporary climb assist solution is required for short duration working.
In the event of a fall, the ALF Pulley locks on quickly to arrest the fall. As fall distances are extremely small, it is extremely unlikely that the user will be incapacitated. However if necessary, a rescue can be easily organised from ground level.
The ALF has been field trialled and cycle tested by over 20,000 users with no detriment to performance and with little or no wear. The ALF has been extensively drop tested, in line with both CE EN360 and ANSI Z359 and with weights other than those required for CE and ANSI Standards, and including static testing to destruction – making it probably the safest Climb Assist product in the world!

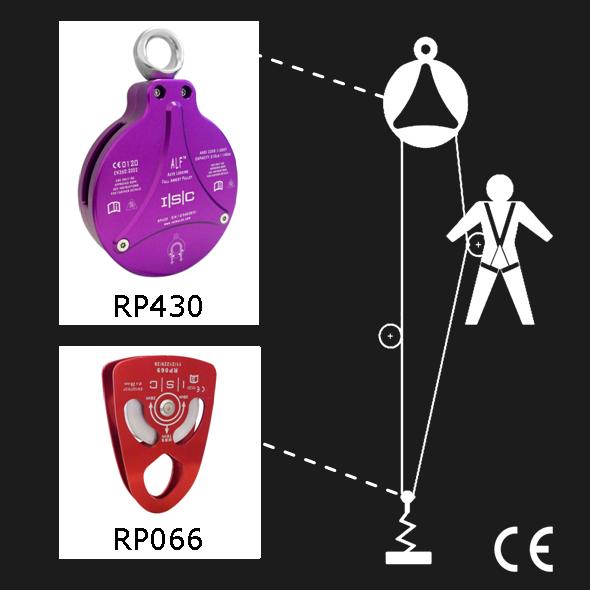

ISC strongly recommend the use of an RP066A Large Single Prussik Pulley (Aluminium) on the ALF system, as this pulley provides a suitable bend radius and helps to achieve the correct friction in the system.
NOTE – THIS UNIT REQUIRES AN ANNUAL INSPECTION AND SERVICE BY AN ISC AUTHORISED SERVICE AGENT OR REPRESENTATIVE.
More details can be seen at :
Strength rating:
Rope dependent
Serviceable:
Yes
Body material:
Aluminium
Finish:
Anodised
Individual serial number:
Yes
Weight:
1.2kg
Approval:
CE EN360
Rope Size:
Approved 11mm EN1891-A ropes only
