Description

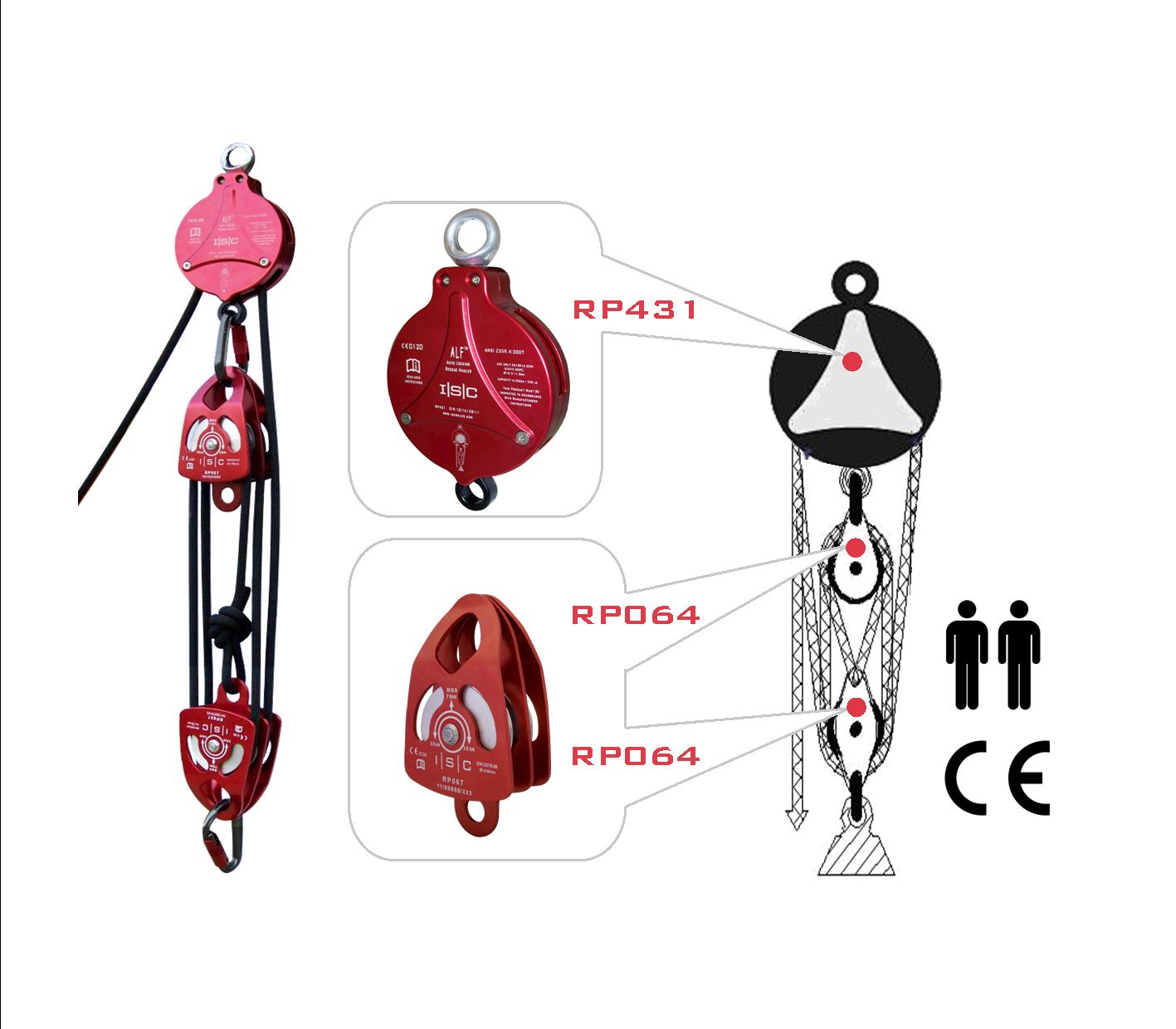

The Rescue ALF (R-ALF™) is an auto-locking pulley which incorporates an integral over-speed braking system and can be used for pick-off rescues and load hauling. Should the user ever accidentally lose control, the device will automatically lock to prevent a free-fall. The auto-locking function offers a simple and effective rescue plan solution, (even for users who are not highly trained/experts), which is suitable for use in the vast majority of locations/workplaces.
The device has been designed to work with approved 11mm Kernmantle rope, and the system is fully compliant with the requirements of ANSI Z359.4. In the absence of a specific EN standard, the R-ALF™ has been CE appproved in line with the PPE Directive, (having been tested to parts of EN360, EN1496 and EN 12278). The R-ALF™ offers a WLL of up to 250kg. The braking system has been life tested over several thousand cycles and therefore (unlike a Fall Arrest Block/SRL) it does not need to be regularly serviced/repaired after every fall arrest, but should be regularly inspected by a trained and authorised person.
The R-ALF™ is supplied as an Out-of-the-Bag, assembled and ready to use rescue solution. It cannot be supplied as a stand alone unit.
Different Heights of Lift can be accommodated, please enquire for prices.
NOTE – THIS UNIT REQUIRES AN ANNUAL INSPECTION AND SERVICE BY AN ISC AUTHORISED SERVICE AGENT OR REPRESENTATIVE.
Standard Kits;
KT431A2-010 – 3:1 R-ALF™ KIT – 10m Height of Lift (two-way locking)
Contents:
RP431A X1
RP065A single + becket X2
KH407TLP1 (anchor connector) X1
KH221SS1 X2
11mm Low Stretch Kermantle Rope (always add +1 mtr for knot) X41mtr for 10mtr height of lift
Hand ascender X1
Duffle bag with instructions x1
KT431A1-010 – 5:1 R-ALF™ KIT – 10m Height of Lift (two way locking)
Contents:
RP431A X1
RP064A1 double + becket X2
KH407TLP1 (anchor connector) X1
KH221SS1 X2
11mm Low Stretch Kermantle Rope (always add +1 mtr for knot) X61mtr for 10mtr height of lift
Hand ascender x1
Duffle bag with instructions x1
Serviceable:
Yes – min 12 monthly intervals
Body material:
Aluminium
Finish:
Anodised
Individual serial number:
Yes
Weight:
1.2kg
Approval:
CE 0120 / ANSI Z359:4:2007
Rope Size:
Approved 11mm EN 1891-A ropes only
Max. Load
250kg
